System Overview

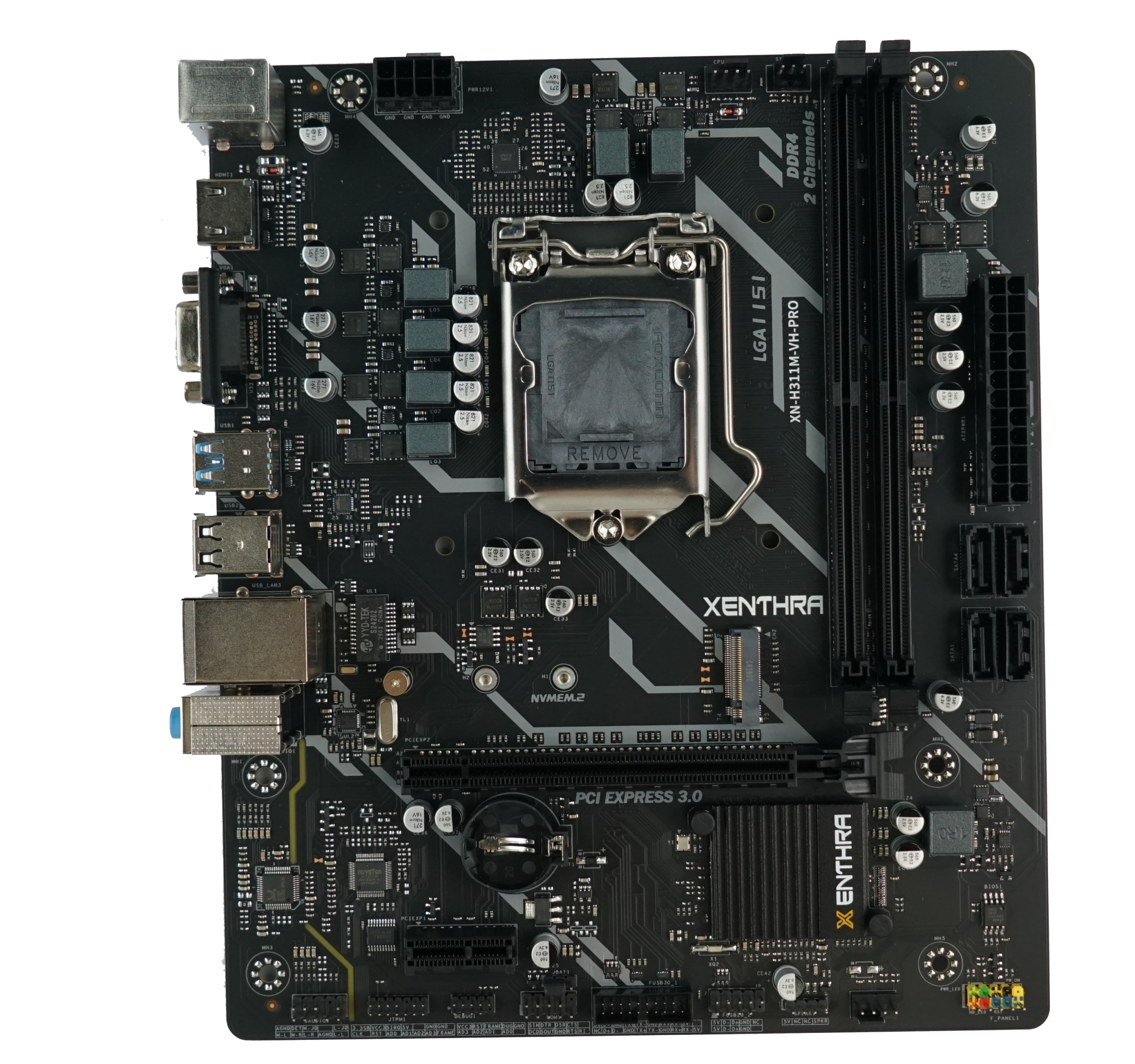

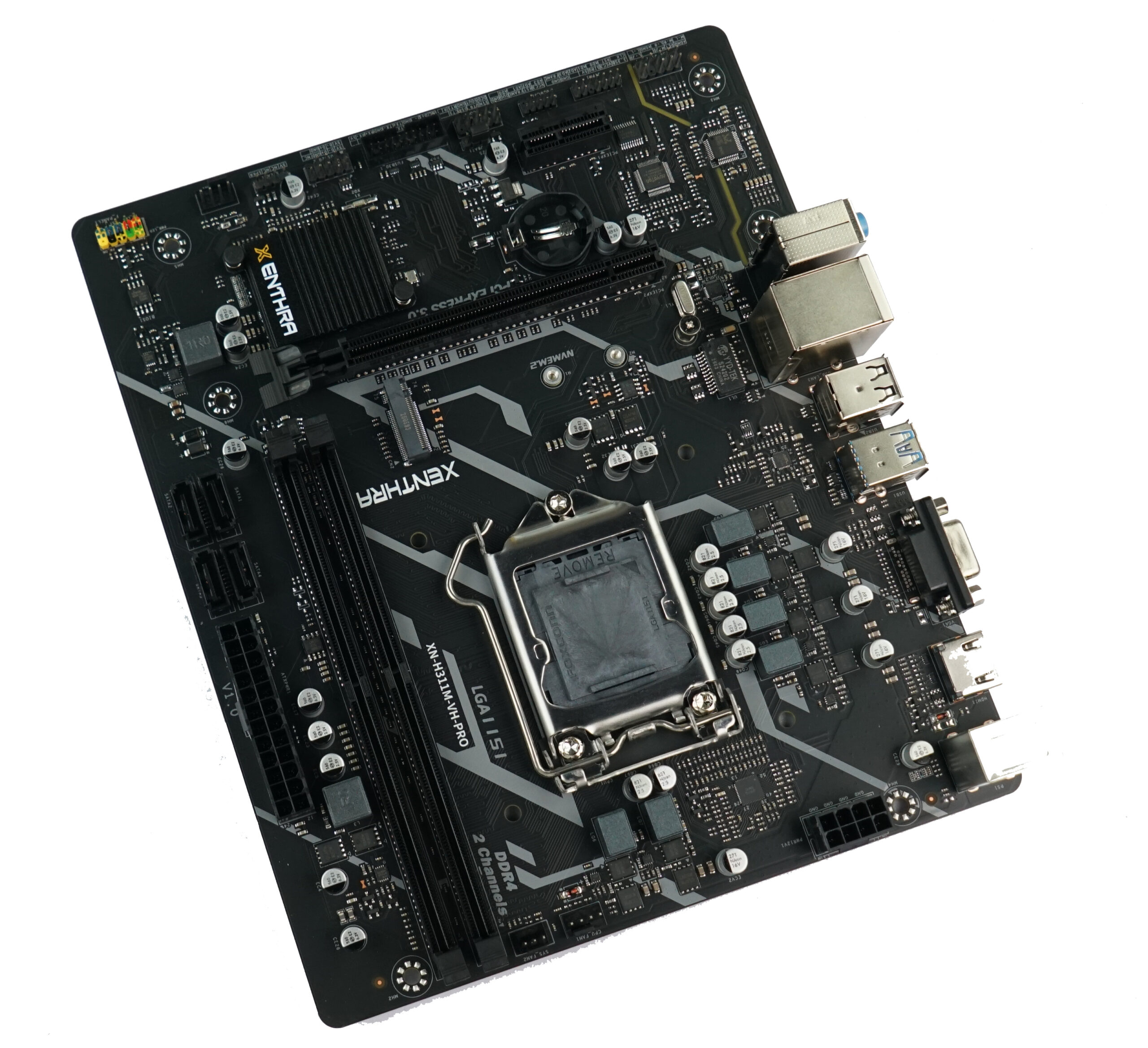

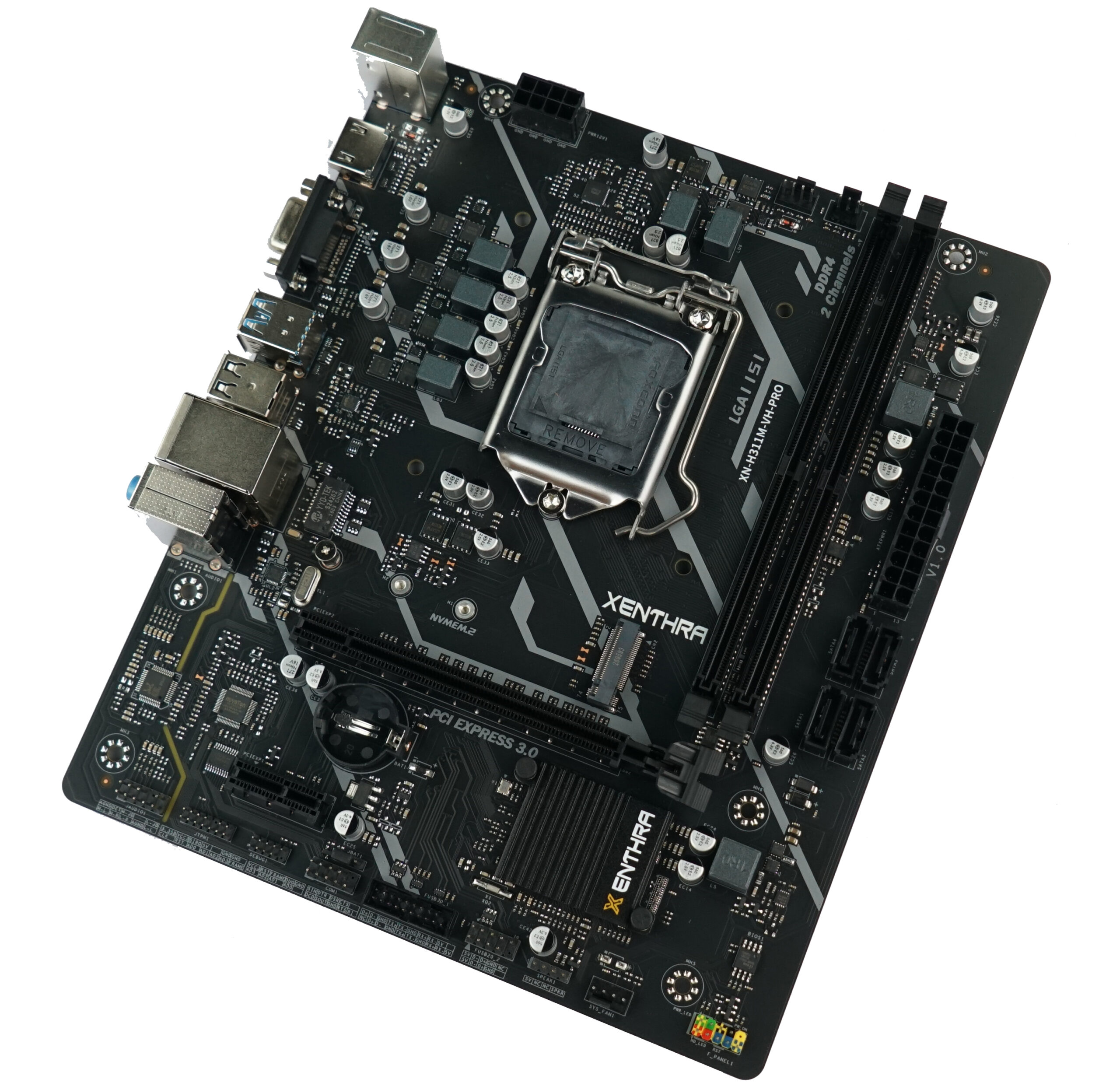

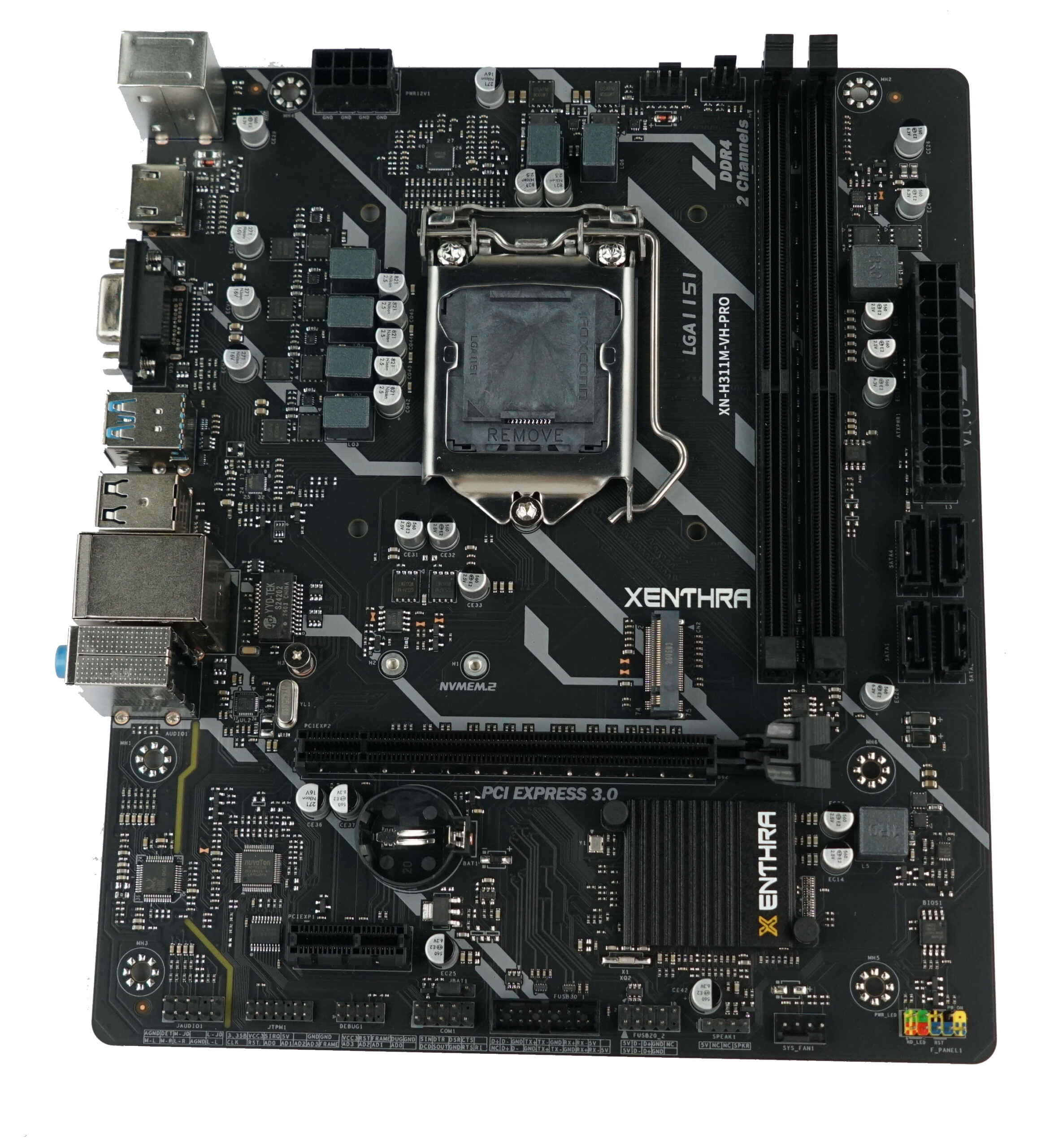

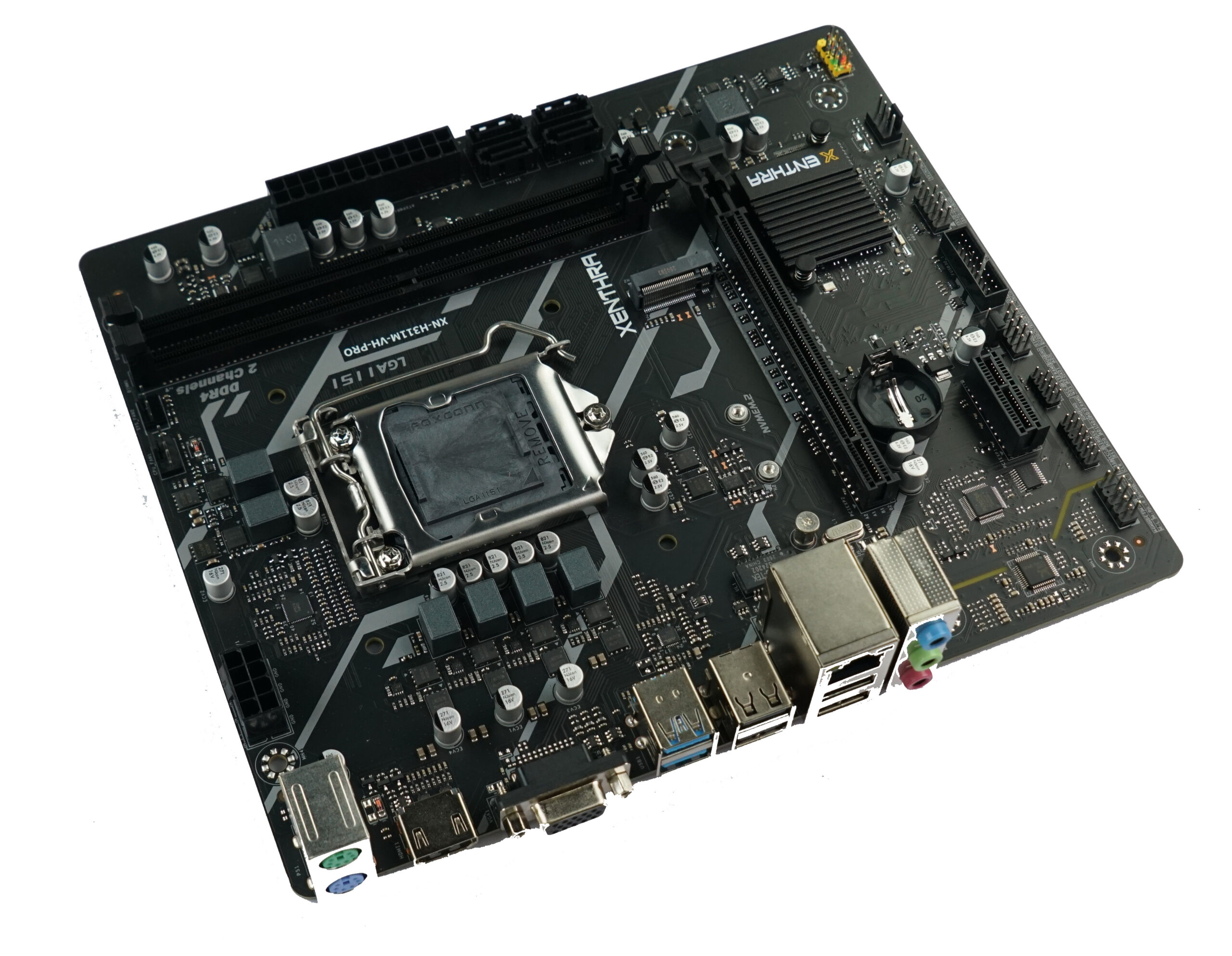

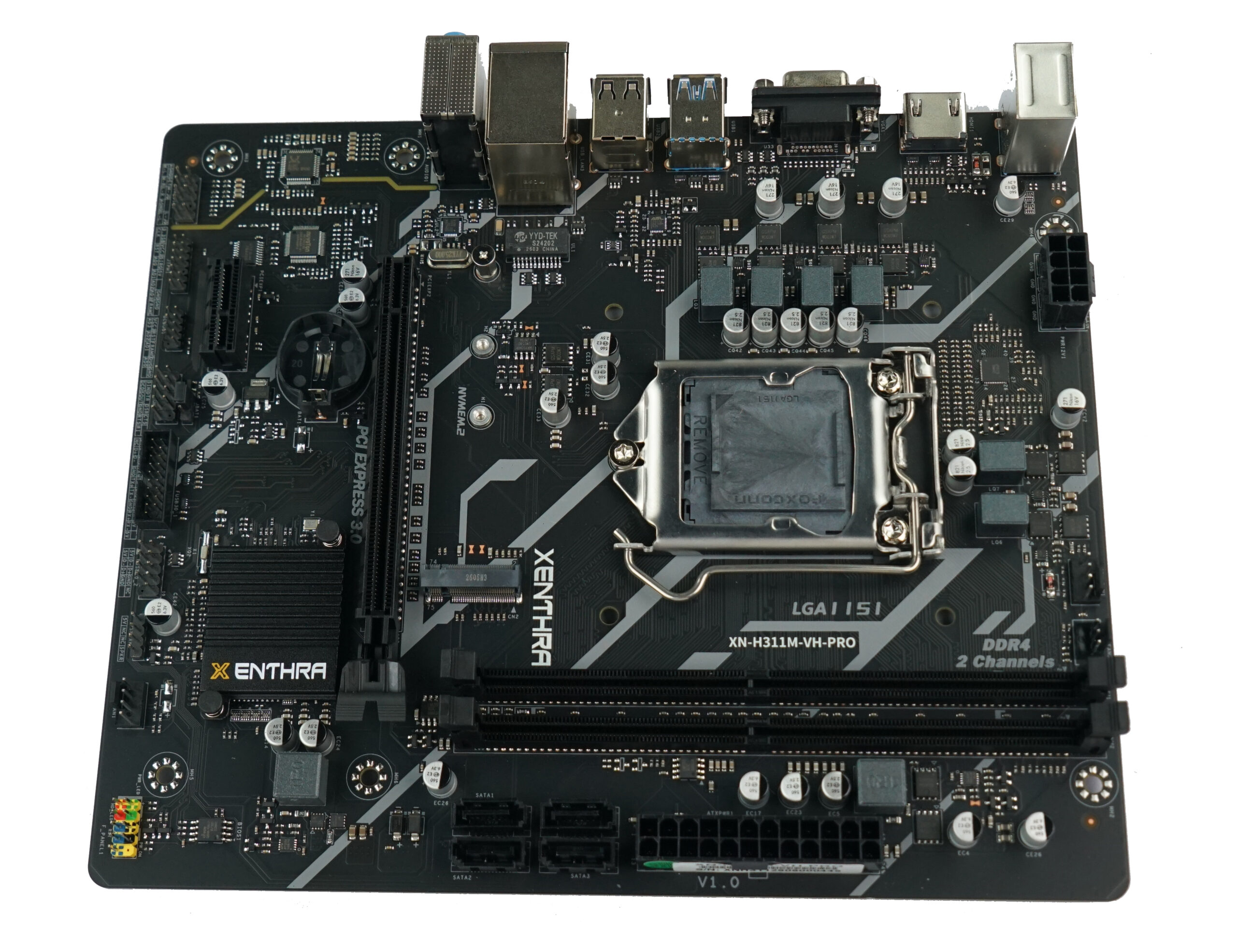

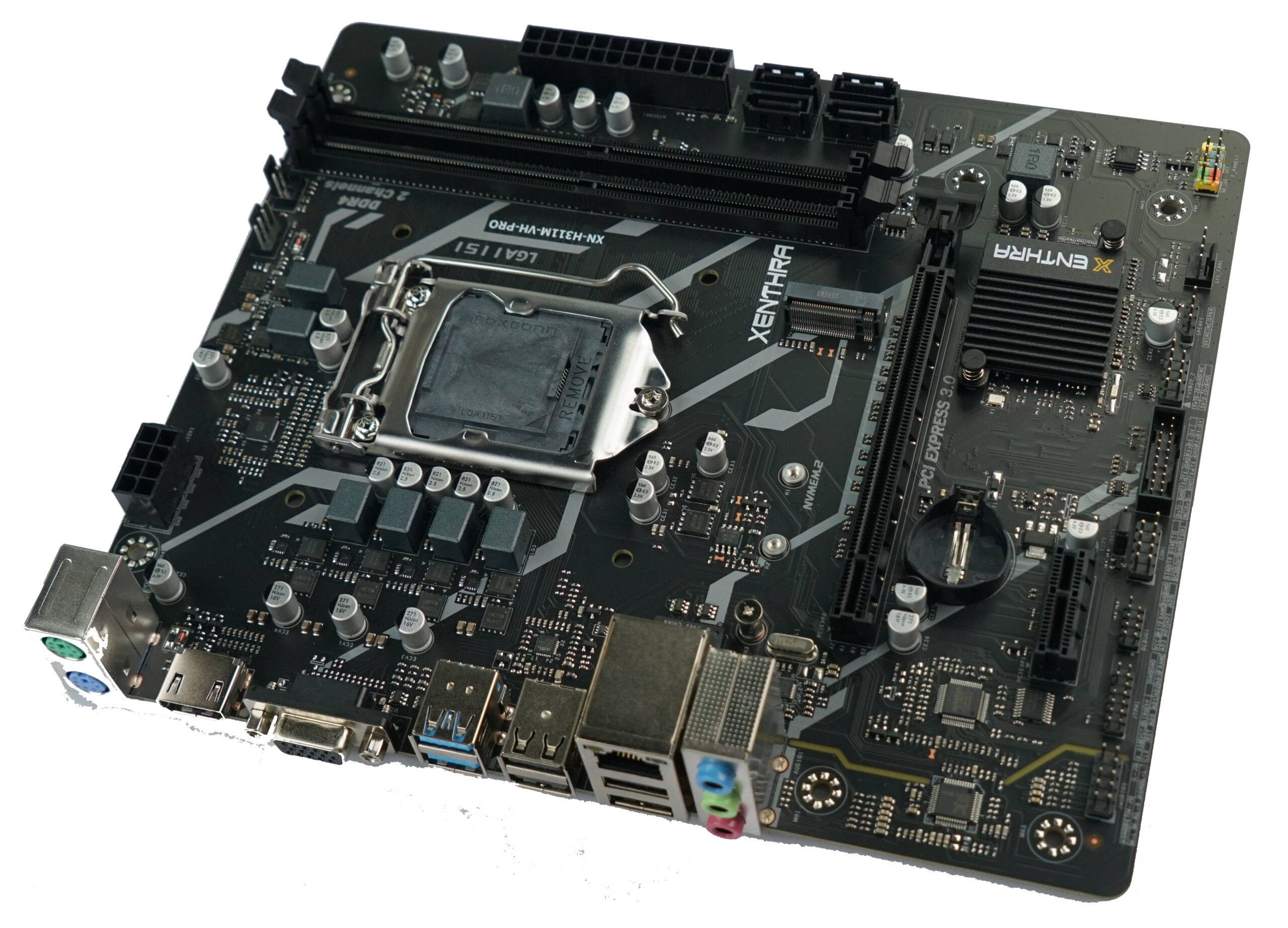

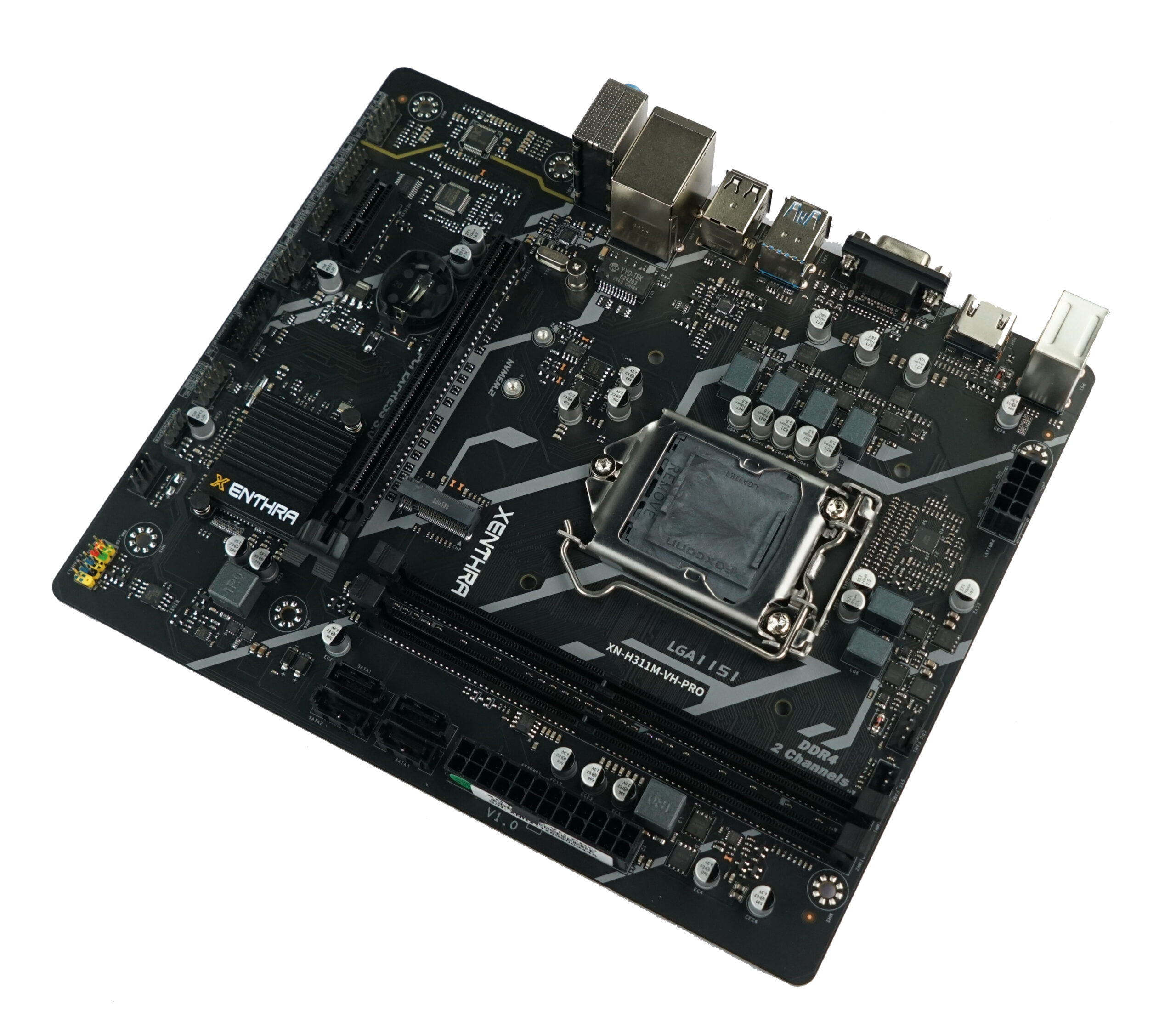

| Brand & Model | XENTHRA XN-H311M-VH-PRO |
| Form Factor | Micro-ATX (190 mm x 225 mm / 180 mm x 216 mm), 4-Layer PCB |
| Chipset | Intel® H110 Express Chipset |
| OS Compatibility | Windows® 10 / 11 & Linux |
Processor (CPU) Support
| CPU Socket | LGA 1151 Socket |
| Supported Processors | Intel® 6th, 7th, 8th & 9th Gen Core™ / Pentium® / Celeron® Processors |
| Sample Validated CPUs | i3-6100, i3-8100, i5-8400, i5-9400, i7-9700, i7-9700K, etc. |
Memory Subsystem
| Slots & Type | 2x DDR4 DIMM Slots |
| Channel Architecture | Dual-Channel DDR4 Memory |
| Clock Speeds | Up to DDR4 2666 MHz |
| Maximum Capacity | Up to 64 GB (Supports 2x 32GB or 16GB per single slot) |
Storage Interfaces
| M.2 Slot | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 mode) |
| SATA Ports | 4x SATA 3.0 (6 Gbps) Ports |
Expansion Slots
| PCI Express | 1x PCIe 3.0 x16 Slot (PCIe 3.0 x16 signal) 1x PCIe 2.0 x1 Slot (PCIe 2.0 x1 signal) |
Rear Panel I/O Ports
| Display Outputs | 1x HDMI Port, 1x VGA (D-Sub) Port |
| Legacy Ports | 1x PS/2 Keyboard/Mouse Combo Port |
| USB Ports | 2x USB 3.0 Ports, 4x USB 2.0 Ports |
| Ethernet | 1x RJ45 Port (Realtek® Gigabit LAN) |
| Audio Ports | 3x Audio Jacks (Line Out, Mic In, Line In) |
Internal Headers & Connectors
| USB Headers | 1x USB 3.0 Header (Expandable to 2x USB 3.0 ports) 1x USB 2.0 Header (Expandable to 2x USB 2.0 ports) |
| Serial Port | 1x COM Header (Supports RS232 mode) |
| Fan Connectors | 1x 4-Pin CPU Fan Connector, 1x 4-Pin SYS Fan, 1x 3-Pin SYS Fan |
| Security & Diagnostics | 1x TPM 2.0 Header, 2x 5-Pin Diagnostic Card Header, 1x JBAT Jumper Cap |
| Panel Headers | 1x Front Panel Header, 1x Audio Built-in Plug Header |
Power, Audio & Environmental Specs
| Power Input | 24-Pin ATX Main Power + 8-Pin 12V CPU Power Socket |
| Audio Controller | Realtek® High-Definition Audio Chip |
| Power Dissipation | Standby: 20W – 45W | Full Load: 80W – 130W (excluding discrete GPU) |
| Operating Environment | Temperature: -10°C ~ 60°C | Humidity: 10% ~ 90% (Non-condensing) |
| Storage Temperature | -25°C ~ 70°C |
